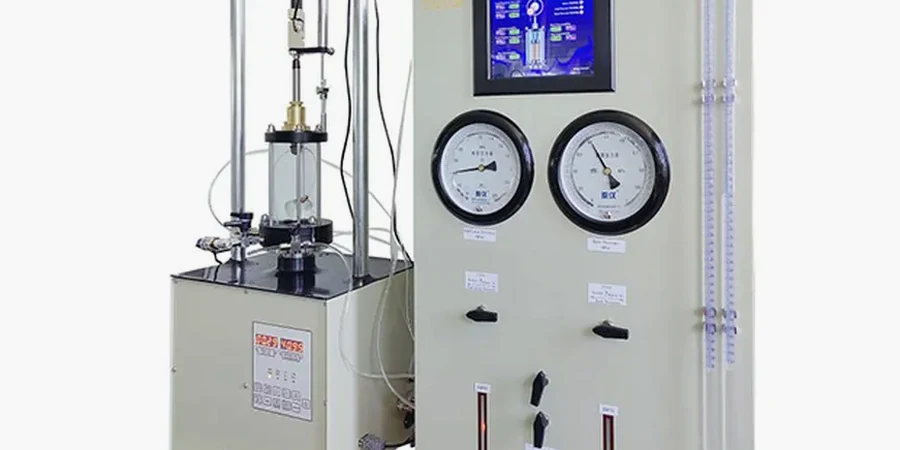

Durham sits on the Triassic Basin, where the Bull City's deep, highly plastic residual silts govern almost every foundation design. At 404 feet elevation, the weathered saprolite can lose over 60% of its strength when saturated. Standard penetration tests only give you an N-value. That's not enough. The triaxial test measures how the ground actually behaves under load. We drain the sample. We saturate it. We shear it. We get the true friction angle and cohesion. For any structure taller than two stories or any cut deeper than five feet, this data separates a safe design from a lawsuit. We often pair the consolidated-undrained stage with a MASW survey to correlate shear wave velocity with stiffness, and run Atterberg limits on the same Shelby tube to confirm the soil's shrink-swell potential before loading.
In Durham's deep saprolite, total stress parameters fail. We measure pore pressure to get effective friction angles — the real number for long-term stability.
Local considerations
IBC Chapter 18 requires shear strength data for any foundation on cohesive soil. In Durham, the Triassic siltstone-derived clays fail the plasticity requirement outright. The 2021 IBC Reference Supplement points directly to ASTM D4767 for this exact scenario. We've seen projects on hold because the geotechnical report only contained SPT blow counts and pocket penetrometer readings. That doesn't satisfy the code official. A consolidated-undrained triaxial test with pore pressure measurement provides the undrained shear strength and the effective stress envelope. It's the difference between a 3,500 psf bearing pressure and a 2,000 psf reduction. The cost of skipping the test is a thicker mat foundation, deeper piles, or a retaining wall that rotates after the first wet season. We run the test. You get the numbers. The design works.
Quick answers
What does a triaxial test cost in Durham?
A single consolidated-undrained triaxial test with pore pressure measurement runs between $1,690 and $3,100, depending on specimen preparation and the number of confining stresses. We typically recommend a set of three specimens at different cell pressures to define the Mohr-Coulomb envelope. That gives you the most reliable c' and φ' values.
When do I need the CU test vs. a UU test?
Use CU with pore pressure for permanent works. That's foundations, permanent slopes, and retaining walls where you need effective stress parameters. The UU test is for short-term construction conditions — think temporary excavation support or checking stability during an open cut before the slab is poured. The code official will ask for CU data on any Durham project with plastic silt.
How do you get undisturbed samples for triaxial testing in Durham's saprolite?
We push thin-wall Shelby tubes with a drill rig, usually 3-inch diameter. The key is keeping the recovery ratio above 90%. If the saprolite is too soft, we use a piston sampler. Back in the lab, we extrude the tube, trim the specimen by hand, and mount it in the cell within 24 hours to minimize moisture loss. Recompacted specimens are an option, but they won't capture the natural structure of the residual soil.
